产品名称:

BFW-1020/1020B

上市Date: 2017-12-19

医用输血输液加温器是通过加热输液管,对输入人体的液体加温的仪器,加温效率高,使用方便;干式槽型加热结构,使用常规输液器管,无需专用耗材。适用于术前、术中、术后患者的输血和输液;静脉营养液输注;儿童或新生儿输液;寒冷环境下输血和输液。

Product Category: Blood and infusion warmer
  • Describe
  • 产品功能
  • 产品参数

Feature:

BFW-1020

l Temperature intellectual controlling technology: adopts intellectual microcomputer controlling technology, with triple protection

Warm the device quickly, warm the fluid automatically and control the temperature accurately in the preset temperature, keep it safe and stable;

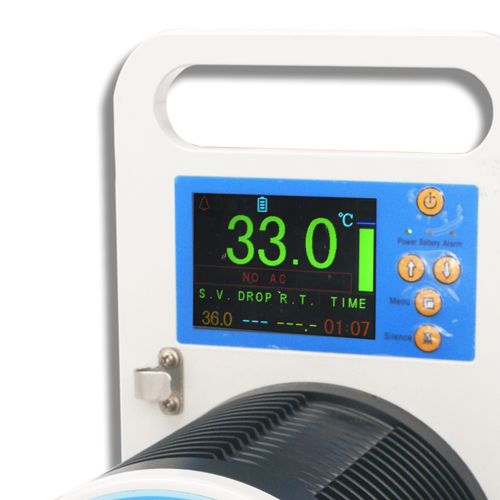

l Color LCD Display:

set temperature,warming time,alarm indication,electricity on or off indication,liquid exist or not indication, wireless access indication;



Security feature: Low temperature alarm & high temperature alarm;



Infrared sensor technology: Audible & Visual alarm in case of finishing infusion;



Warming structure: dry-groove type, binocular tube warming, faster & better efficiency. Use normal infusion tube, no need special consumables.



Connect the computer with RS-232 port to control the device.



Various kinds of alarm function, include alarm light, alarm sound and

alarm information indicator, to remind doctor or medical staff:  heating plate overheating alarm, Liquid temperature overheating alarm, no liquid alarm, no heating alarm.



CE certification

High capacity  warming efficiency: 0-9 L/h



Specification:

l  Power supply: AC 220V±10%  50Hz±1Hz or 110V±10%  60Hz±1Hz

l  Power: 300W

l  Temperature range: 28-41 (Increasing by 0.1) ± 0.5

                     82-105.8 (Increasing by 0.2)±1

l  Outer dimension: 190mm x 260mm x 150mm

l  Weight: 3kg

l  Waterproof and dustproof class: lp64



Certification:

The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.



Package:

l  Single Unit     Dimension: 37cm x 28cm x 27cm        Gross Weight: 5.5kg

l  6 pcs/carton   Dimension: 52cm x 36cm x 67cm        Gross Weight: 26kg

Normative collocation: fasten part, power wire, operation manual, approval certification, warranty card

FAQ:




医用输血输液加温器是通过加热输液管,对输入人体的液体加温的仪器,加温效率高,使用方便;干式槽型加热结构,使用常规输液器管,无需专用耗材。适用于术前、术中、术后患者的输血和输液;静脉营养液输注;儿童或新生儿输液;寒冷环境下输血和输液。
